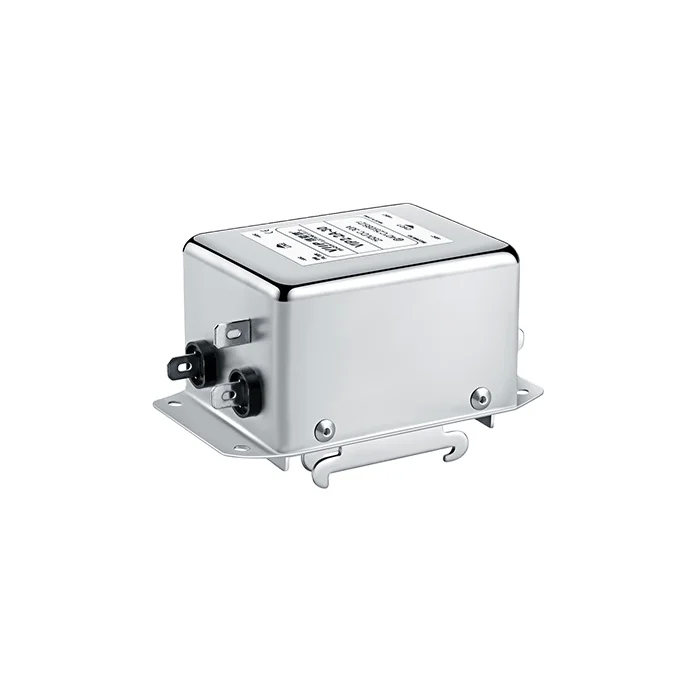

110V 250V Input AC EMI Filter with Low Pass Transfer Function and Compact Structure for Building Automation

Marka Adı:	VIIP
Model Numarası:	VIP3-41A
Adedi:	1 adet
fiyat:	5USD
Paketleme Ayrıntıları:	333318
Ödeme Şartları:	T/T, Western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Sertifika:

CE TUV UL ROHS REACH

Giriş Empedansı:

500VDC/100MOHM DAK

Nominal Voltaj:

110/250VAC

Değerlendirilmiş Akım:

0,5A-800A

EMC Filtresi

Ekleme kaybı:

60dB-90dB

Sertifika:

CE ROHS,CE CQC,UL.TUL

Yetenek temini:

10-15 gün içinde 2000 adet

Vurgulamak:

Low Pass Transfer Function AC EMI Filter

Compact Structure EMI Filter

High Insertion Loss EMC Filter

Ürün Tanımı

110V 250V Input AC EMI Filter For Building Automation TUV 20A

Input AC EMI Filter For Building Automation Print Machine Hardware Equipment

Quick Detail

Model Number: VIP4-1A-20
Type: EMI Filter
Place of Origin: China
Brand Name: VIIP
Transfer Function: Low Pass
Nominal Center Frequency: 150KHz-30MHz
Input Impedance: 50Ω
Insertion Loss: 20~100dB
Item: Low Pass EMI Filter
Rated Voltage: 440V
Rated Current: 0.5A-800A
Environmental Temp: 50°C
Temperature Range: 25 / 085 / 21
Operating Frequency: 50/60HZ
Line to Ground: 2250VDC or 2000VAC
Certificate: UL TUV ISO9001 CE ROHS

Description

Suitable for three phase three line power supply. Compact structure, simple and time-saving installation, specially suitable for applications with limited space, highly cost effective.

Specifications

Applications

Widely used in various electrical units with connection style, such as print machine, packing machine, textile equipment, industry air conditioner, UPS, medical equipment, etc.

Our Advantages

(1) Sales Network

Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.

(2) Hardware Equipment

The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.

(3) Integrated Technical Service

Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.

(4) Excellent Corporate Culture

The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements.
