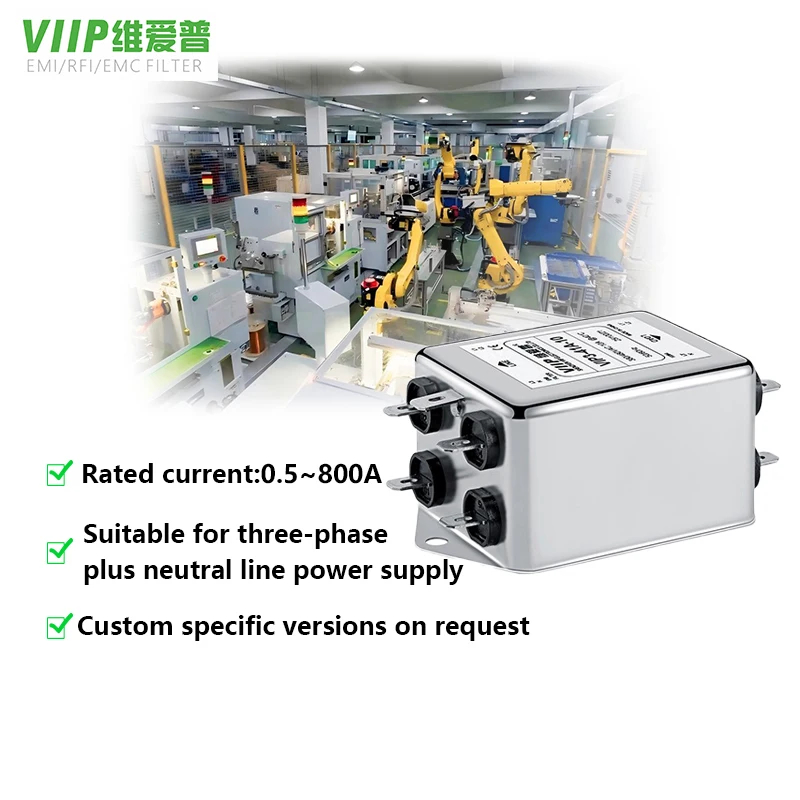

380V Input AC EMI Filter with 20A Rated Current and 440V Rated Voltage for Building Automation

Marka Adı:	VIIP
Model Numarası:	VIP3-41A
Adedi:	1 adet
fiyat:	15USD
Paketleme Ayrıntıları:	333318
Ödeme Şartları:	T/T, Western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Sertifika:

CE TUV UL ROHS REACH

Giriş empedansı:

500VDC/100MOHM MIN

Nominal gerilim:

110/250VAC

Nominal akım:

0.5A-800A

EMC Filtresi

Ekleme kaybı:

60dB-90dB

Sertifika:

CE ROHS,CE CQC,UL.TUL

Yetenek temini:

10-15 gün içinde 2000 adet

Vurgulamak:

380V Input AC EMI Filter

20A Rated Current EMC Filter

440V Rated Voltage Low Pass Filter

Ürün Tanımı

380V Input AC EMI Filter with Low Pass Transfer Function and Compact Structure for Building Automation

The 380V Input AC EMI Filter is designed for building automation systems and print machine hardware equipment, featuring a compact structure for space-limited applications.

Quick Specifications

Model Number: VIP4-1A-20
Type: EMI Filter
Place of Origin: China
Brand Name: VIIP
Transfer Function: Low Pass
Nominal Center Frequency: 150KHz-30MHz
Input Impedance: 50Ω
Insertion Loss: 20~100dB
Rated Voltage: 440V
Rated Current: 0.5A-800A
Environmental Temp: 50°C
Operating Frequency: 50/60HZ
Line to Ground: 2250VDC or 2000VAC
Certifications: UL, TUV, ISO9001, CE, ROHS

Product Description

This three-phase three-line power supply EMI filter features a compact structure for simple, time-saving installation. Its space-efficient design makes it ideal for applications with limited space while offering high cost-effectiveness.

Applications

Widely used in various electrical units including print machines, packing machines, textile equipment, industrial air conditioners, UPS systems, and medical equipment.

Our Advantages

Global Sales Network

Products exported to Europe, the United States, South Korea, Southeast Asia and other regions.

Advanced Hardware Equipment

Fully automatic magnetic material detection equipment and production lines with anti-interference magnetic core production base.

Integrated Technical Service

Combining R&D, production, sales of anti-interference (EMC) electronic components with EMC testing services.

Quality Management

Strict quality standards implementation with continuous improvement processes focused on customer requirements.
